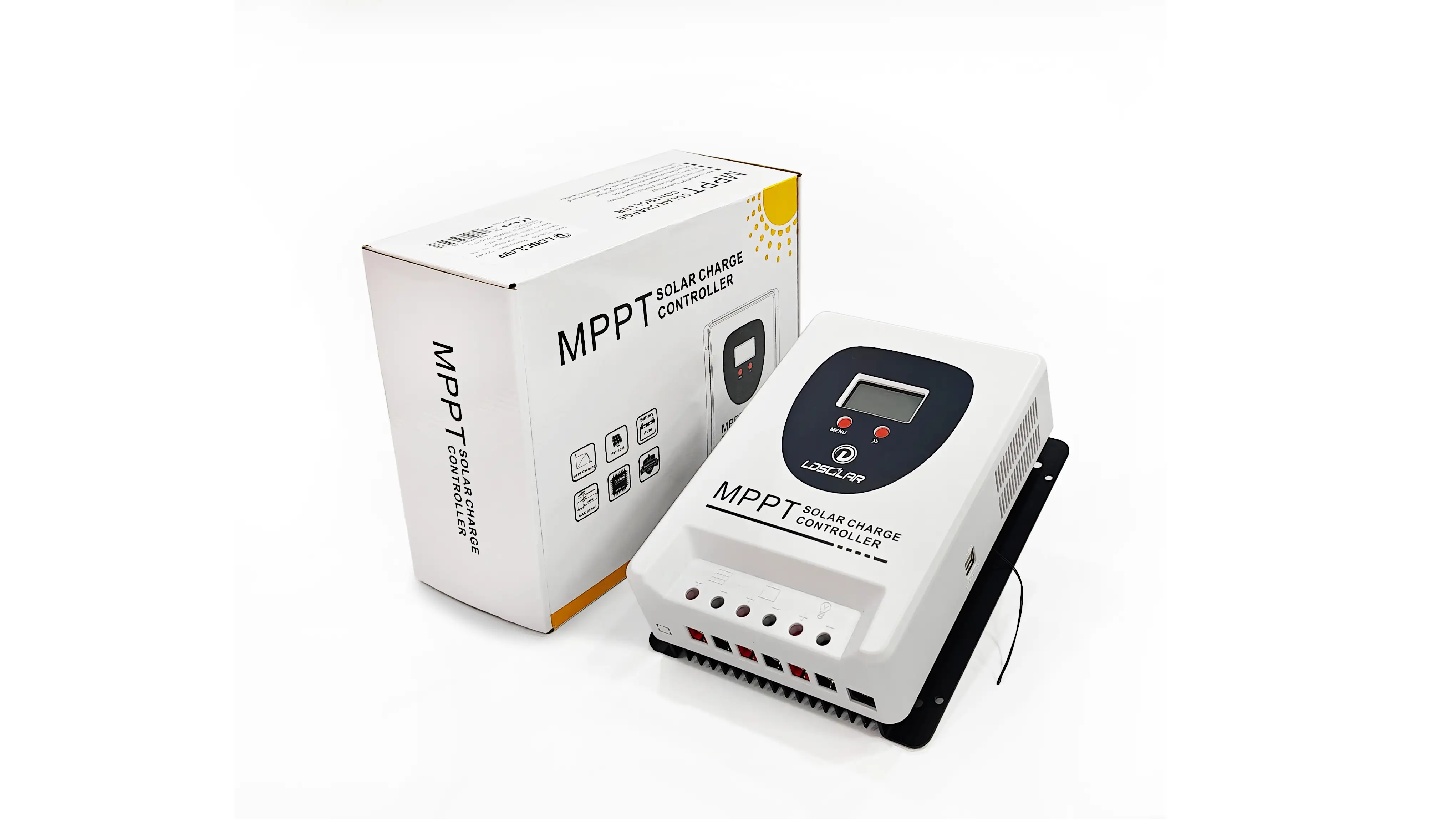

LDSOALR MPPT Solar Controller Factory direct price 10A 15A 20A 30A 40A 60A 12V/24V system Support OEM
- Product Name：Tracer Dream S Series/TD-S Series
- Product Type: MPPT solar controller
-
Rated charge current: 10A 20A 30A 40A 50A 60A
- System Voltage: 12V/24V auto
- Max. PV open circuit voltage：60V/100V
- Communication：External WiFi/Bluetooth(optional)
- Battery: Support lithium battery and multiple battery type
- Start from PV : Support
- Cooling Mode:Air Cooling
-
Terminals: Customized large Terminals(Red/Black)
- 16 Safety Protections:High-Temperature Charging Power Derating Protection、Real-time Energy Statistics Function、Power Limited Protection......
- Accessories: Free App Service
Use LDSOLAR Controller Build Off-grid Solar System
Tracer Dream Series
10A / 20A / 30A / 40A /50A / 60A
12V-24V / Max.60V/100V Solar Input
Tracer DreamS Series adopts MPPT technology. It's also ran by 32 bits CPU,so stability and speed can be guaranteed. Based on the synchronous rectifier technology.the transfer efficiency of circuit can be increased up to 98% and the Pmax tracking accuracy up to 99.5%.So our MPPT can trace the accurate Pmax inthe shortest time (10~20s),even when the sunlight changes rapidly. It can perfectly handle extreme weather or weak sunlight.
Product Details
Integrated white housing with smooth lines
Suitable for visual needs of home, commercial, industrial and other scenarios
Highlights
The Tracer Dream S Series Solar Charge Controller combines advanced digital technology with robust construction to deliver superior performance. Key features include:
Parameter
Detailed explanation of specific parameters
| Item | TD2106S | TD2206S | TD2110S | TD2210S | TD2310S | TD2410S | TD2510S | TD2610S |
| System nominal voltage | 12/24VDC Auto ① | |||||||
| Rated charge current | 10A | 20A | 10A | 20A | 30A | 40A | 50A | 60A |
| Rated discharge current | 10A | 20A | 10A | 20A | 30A | 30A | 30A | 30A |
| Battery voltage range | 8～32V | |||||||
| Max. PV open circuit voltage | ② 60V ③ 55V | ② 100V ③ 95V | ||||||
| MPP voltage range | (Battery voltage +2V)～ 50V | (Battery voltage +2V)～ 75V | ||||||
| Battery Type | Sealed(Default)/Gel/Flooded/LiFePO4/ Li(NiCoMn)O2/ User | |||||||
| Rated charge power | 130W/12V 260W/24V | 260W/12V 520W/24V | 130W/12V 260W/24V | 260W/12V 520W/24V | 390W/12V 780W/24V | 520W/12V 1040W/24V | 650W/12V 1300W/24V | 750W/12V 1500W/24V |
| LVD | 11.0V ADJ 9V….12V；×2/24V； | |||||||
| LVR | 12.6V ADJ 11V….13.5V；×2/24V； | |||||||
| Float voltage | 13.8V ADJ 13V….15V；×2/24V； | |||||||
| Boost voltage |
14.4V ；ADJ14V….17V； ×2/24； Battery Voltage less than Boost Restart Voltage Start Boost changing for 2hours |
|||||||
| Self-consumption |
≤28mA(12V) ≤19mA(24V) |
|||||||
| Discharge circuit voltage drop |
≤0.12V |
|||||||
| Temperature compensate Coefficient ④ |
-4mv/℃/2V |
|||||||
| Working environment temperature◆ |
-20℃～+40℃(100% input and output) |
|||||||
| Storage temperature range |
-20℃～+70℃ |
|||||||
| Relative humidity |
≤95%, N.C. |
|||||||
| Enclosure |
IP30 |
|||||||
①When a lithium battery is used, the system voltage can’t be identified automatically.
②At minimum operating environment temperature
③At 25℃ environment temperature
④When a lithium battery is used, the temperature compensate coefficient will be 0.
◆The controller can work under full load in the working environment temperature, When the internal temperature is more than 80℃, the reducing power charging mode is turned on.
Installation Diagram
Please be sure to follow the wiring instructions as incorrect wiring can cause damage to the controller.
